Address
Head Office : Farm Road, Sambalpur - 768005 (Odisha)
Works : Gopalpali, Near Service Road, Sambalpur - 768006 (Odisha)
Our Products

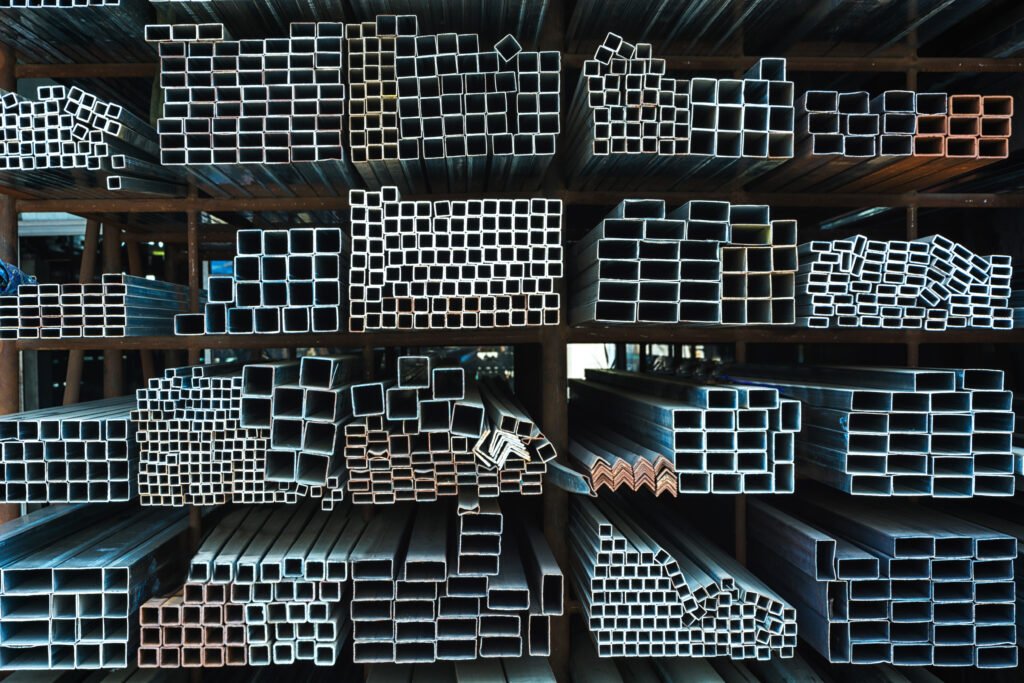

We manufacture a wide range of BIS-compliant ERW pipes, square pipes, and rectangular sections engineered for strength, precision, and reliable performance across industrial and infrastructure applications.
JSW (BPSL) COLOURS COATED ROOFING SHEETS
C.R.Sheets
Single ribbed trapezoidal profile
Sories & system Self Drilling Screw
Tile profile roofing sheets
Double ridded trapezoidal profile
H.R.Sheets

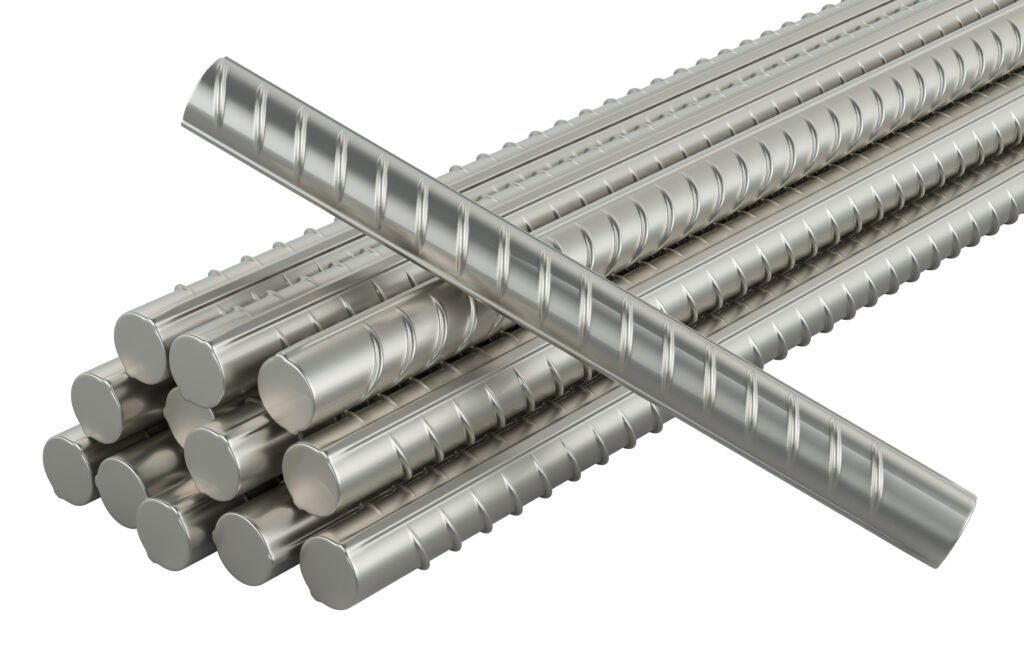

M.S. TMT RODS
M.S.ANGLE & FLAT
OTHER DEALS & WHOLESALERS :
Arch/cuved profile/claping
Ridges (mogra)
Accessories & rainwater systems.
Euro-quard UPVC rainwater all larding roofing systems & Accessories
Flexible disigns and attractive colours
JSW KALINGA, M.S.PIPE, G.I.PIPE, G.P.PIPE (JSW BHUSAN & OTHERS)
C.R.SHEETS | H.R.SHEETS | G.P. SHEETS | G.C.SHEETS | M.S.BEAM | M.S.CHANNELS |
M.S. TMT RODS | M.S.ANGLE & FLAT | GUIDE & SHUTTER PROFILE
ALL LONG & FLAT PRODUCTS
Product Specification:
Size (½") – 190D / 15 × 15 mm
| D Size | Actual Size (mm) | Thickness (mm) | Weight |
|---|---|---|---|
| 190D | 15 × 15 | 1.2 | 3.5 kg |
| 190D | 15 × 15 | 1.4 | 4.5 kg |
| D Size | Actual Size (mm) | Thickness (mm) | Weight |
|---|---|---|---|
| 250D | 19 × 19 | 0.7 | 3 kg |
| 250D | 19 × 19 | 1.2 | 5 kg |
| 250D | 19 × 19 | 1.5 | 6 kg |
| 250D | 19 × 19 | 1.8 | 7 kg |
| 250D | 19 × 19 | 2.0 | 8 kg |
Size (1") – 320D / 25 × 25 mm
| D Size | Actual Size (mm) | Thickness (mm) | Weight |
|---|---|---|---|
| 320D | 25 × 25 | 0.6 | 2.6 kg |
| 320D | 25 × 25 | 0.8 | 3.6 kg |
| 320D | 25 × 25 | 1.0 | 4.3 kg |
| 320D | 25 × 25 | 1.2 | 6 kg |
| 320D | 25 × 25 | 1.5 | 7 kg |
| 320D | 25 × 25 | 1.7 | 8 kg |
| 320D | 25 × 25 | 2.2 | 10 kg |
| 320D | 25 × 25 | 2.8 | 12 kg |
Size (1¼") – 410D / 32 × 32 mm
| D Size | Actual Size (mm) | Thickness (mm) | Weight |
|---|---|---|---|
| 410D | 32 × 32 | 1.2 | 7 kg |
| 410D | 32 × 32 | 1.5 | 9 kg |
| 410D | 32 × 32 | 1.8 | 11 kg |
| 410D | 32 × 32 | 2.2 | 13 kg |
| 410D | 32 × 32 | 2.5 | 15 kg |
| 410D | 32 × 32 | 2.8 | 17 kg |
Size (1½") – 480D / 38 × 38 mm & 50 × 25 mm
| D Size | Actual Size (mm) | Thickness (mm) | Weight |
|---|---|---|---|
| 480D | 38 × 38 / 50 × 25 | 1.2 | 9 kg |
| 480D | 38 × 38 / 50 × 25 | 1.4 | 10 kg |
| 480D | 38 × 38 / 50 × 25 | 1.7 | 12 kg |
| 480D | 38 × 38 / 50 × 25 | 2.2 | 15 kg |
| 480D | 38 × 38 / 50 × 25 | 2.5 | 18 kg |
| 480D | 38 × 38 / 50 × 25 | 2.9 | 20 kg |
| 480D | 38 × 38 / 50 × 25 | 3.2 | 22 kg |
| 480D | 38 × 38 / 50 × 25 | 3.5 | 24 kg |
Size (2") – 760D / 62 × 62 mm & 80 × 40 mm
| D Size | Actual Size (mm) | Thickness (mm) | Weight |
|---|---|---|---|
| 760D | 62 × 62 / 80 × 40 | 1.6 | 16 kg |
| 760D | 62 × 62 / 80 × 40 | 2.0 | 22 kg |
| 760D | 62 × 62 / 80 × 40 | 2.2 | 25 kg |
| 760D | 62 × 62 / 80 × 40 | 2.5 | 28 kg |
| 760D | 62 × 62 / 80 × 40 | 2.8 | 32 kg |
Size (3") – 880D / 72 × 72 mm & 96 × 48 mm
| D Size | Actual Size (mm) | Thickness (mm) | Weight |
|---|---|---|---|
| 880D | 72 × 72 / 96 × 48 | 2.0 | 26 kg |
| 880D | 72 × 72 / 96 × 48 | 2.2 | 28 kg |
| 880D | 72 × 72 / 96 × 48 | 2.5 | 33 kg |
| 880D | 72 × 72 / 96 × 48 | 2.9 | 35 kg |
| 880D | 72 × 72 / 96 × 48 | 3.2 | 40 kg |
| 880D | 72 × 72 / 96 × 48 | 3.5 | 45 kg |
Size (1½" × 1") – 40 × 25 mm
| Actual Size (mm) | Thickness (mm) | Weight |
|---|---|---|
| 40 × 25 | 1.2 | 7 kg |
| 40 × 25 | 1.5 | 9 kg |
| 40 × 25 | 1.8 | 11 kg |
| 40 × 25 | 2.1 | 13 kg |
Size (2½" × 1") – 70 × 25 mm
| Actual Size (mm) | Thickness (mm) | Weight |
|---|---|---|
| 70 × 25 | 1.2 | 11 kg |
| 70 × 25 | 1.5 | 13 kg |
| 70 × 25 | 1.7 | 15 kg |
| 70 × 25 | 1.9 | 17 kg |
| 70 × 25 | 2.2 | 20 kg |
